6th Storey (Two Bed Rooms & Two Baths)


 3D-Render View

3D-Normal View
 Front Elevation

Back Elevation
 Left Elevation

 Right Elevation
 Layout Plan

3D- Furniture Layout-1
 3D- Furniture Layout-2
3D-Furniture Layout-3
 3D-Furniture Layout-4


Two Bed Rooms & Two Baths ပါေသာဒီဇိုင္းေလးပါ ။ ေလွကား သို ့ဓါတ္ေလွကား ေနရာကိုေတာ့ ထည့္မစဥ္းစားထားရေသးပါ။ လုံးခ်င္းအိမ္ ဒီဇိုင္းအတြက္လည္းသင့္ေတာ္ပါတယ္။











Monday 10 September 2012

Revit Notes-4 ( Line Weights)


when we want to manage Line Weights  we can go Line Weights Button under Additional Settings (See Figure-1)


(Figure-1)


we can choose Line Weights depend upon we choose which number and scale.
(See Figure-2)

(Figure-2)





Revit Notes-3 ( Line Styles)

when we want to create line styles we choose Additional Settings under Manage Ribbon
(See in Figure-1)


(Figure-1)

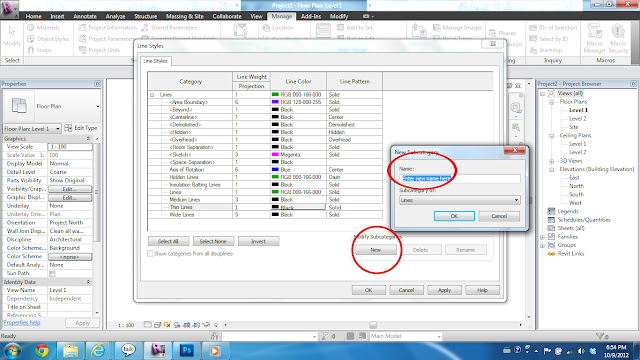

After that we click new button , type name and we can choose line color and line pattern
(See Figure-2)


(Figure-2)

now we can draw line as we created or choose any line type under line style .
(See in Figure-3)


(Figure-3)



Revit Notes-2 (Hide Elements)


When u want to Hide Element

1. select object...........and type EH
2. select object ..........Right click ............. Hide in view element (see Fig 1)

 (Figure-1)

3. select object......... Go to View Control Bar ................click Temporary Hide Isolate      Button  and choose Hide Element (see Figure- 2)

(Figure-2)



Revit Notes-1 (Model Line,Detail Line & Callout)


1. Model Line  -  when u draw model line can see in all view

  • model line is under Home Ribbon (show in red circle)




2. Detail Line - when u draw can see only in active view

  • detail line is under Annote Ribbon ( show in red circle see Figure-1 )
(Figure-1)



Model Line can change to detail line & Detail line can change to model line

when u want to change  model line to detail line select model line and click convert lines so model line will change to detail line. (see Figure-2)
 Same method to detail line to model line.


(Figure-2)
3.Callout


when we want to show detail we use callout
callout is under View Ribbon ( show in red circle see Figure-3)





Sunday 9 September 2012

Home Layout -2






Sketch Plan


Furniture Layout Plan

3D-Layout 1


3D-Layout 2


3D-Layout 3


 3D View-1

Elevation-1

Elevation-2

  Elevation-3


Elevation-4

Furniture အစုံထည့္ၿပထားတဲ့ အိမ္ဒီဇိုင္းေလးပါ။ Revit Software ကိုသံုးၿပီးဆြဲထားပါတယ္။

Thursday 6 September 2012

Family Master Bed Room

Master Bedroom Layout-2



Sketch Plan

Render Plan View

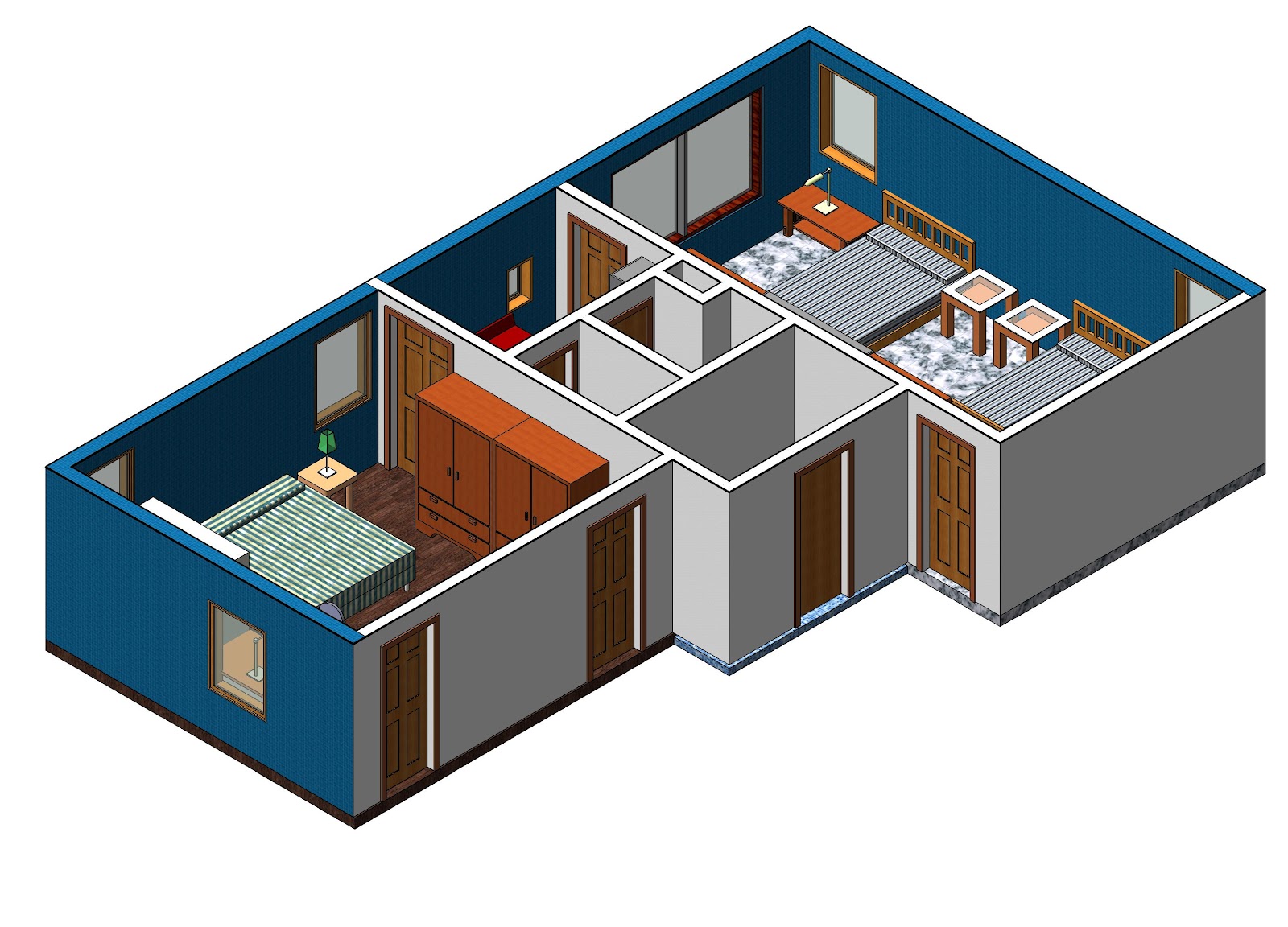

3D View-1
3D View-2
3D View-3


Family Master Bedroom Layout ဒီဇိုင္းေလးပါ။ Parent Room နဲ ့ Children Room ကိုအလြယ္တကူ
၀င္လို ့ရေအာင္လုပ္ထားတဲဲ့ဒီဇိုင္းေလးပါ။ Toilet နဲ ့ Bath Room ကို
 common သုံးလို ့ရေအာင္လုပ္ထားတာပါ။

Wednesday 5 September 2012

Home Layout -1



 Sketch Plan


Furnitutre Layout Plan

3D Layout -1

3D Layout-2

 3D Layout-3
3D Layout-4

 3D Render View
  Left Elevation
 Right Elevation
 Front Elevation

Back Elevation

Master Bed Room ၁ ခန္း (ေရခ်ဴိးခန္း ၊ အိမ္သာတြဲလ်ွက္) ႏွင့္ ရိုးရိုးအိပ္ခန္း ၃ခန္းပါေသာ Home Layout Design ပါ။ ေၿမေနရာ သိပ္က်ယ္က်ယ္မလိုပဲႏွင့္ အိပ္ခန္း မ်ားမ်ားလိုခ်င္ေသာအိမ္ရွင္မ်ားအတြက္ သင့္ေတာ္ေသာ ဒီဇိုင္းေလးပါ။ Revit Software ကိုသံုးၿပီး ဆြဲထားပါတယ္။ ( 05 September 2012)

Tuesday 4 September 2012

Master Bed Room Layout

Master Bed Room Layout-1








ေရခ်ဴိးခန္း ၊အိမ္သာ တြဲလ်ွက္ ပါတဲ့ Master Bed Room Layout ဒီဇိုင္းေလးပါ။အိပ္ခန္း သီးသန္ ့ရိွၿပီး
အ၀တ္ဘီဒို ေတြကို အကန္ ့ခြဲၿပီးဖန္တီးထားတဲ့အတြက္အိပ္ခန္းမွာရွင္းရွင္းေလး
နဲ ့သပ္ရပ္တဲ့ ဒီဇိုင္းေလးပါ။ Computer Table တစ္ခု ၊ စာအုပ္ဘီဒိုတစ္လုံးပဲအိပ္ခန္းထဲမွာထားပါတယ္။ Revit Software ကိုသံုးၿပီး ဆြဲထားပါတယ္။
